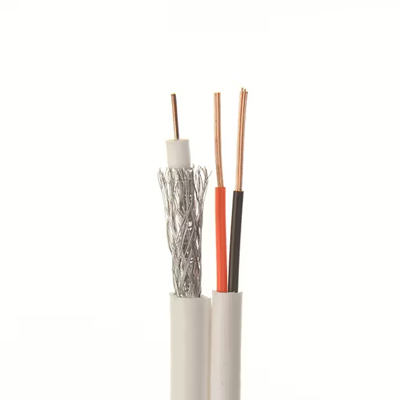

CCTV Camera Cable
Product Features
- Co-axial (Video Cable) Inner Conductor Solid Bare Copper
- Solid Polyethylene Dielectric
- 1st Shield:- Bonded Aluminum Tape
- 2nd Shield:- Aluminum Alloy Braid
- Co-axial Jacket PVC Black
- 3 Power Cores - Plain Stranded Copper Conductor
- Flame Retardant PVC Jacket, ST1 Grade Conforming to IS 5831
- Suitable for CCTV Camera & Surveillance Systems
- Reliable Video Signal Transmission with Power Supply
Electrical Properties
- DC Resistance (Inner Conductor): Max. 62.0 Ω/Km at 20°C
- Braid Resistance: Max. 75.0 Ω/Km at 20°C
- Loop Resistance: Max. 138.0 Ω/Km at 20°C
- Capacitance Between Inner & Outer Conductor: ≤ 158.00 pF/meter
- Flexible Power Cores Resistance: Maximum 155.0 Ω/km @ 20˚C
Technical Specifications
| Parameter | Specification |
|---|---|
| Inner Conductor | Solid Bare Copper |
| Dielectric | Solid Polyethylene |
| 1st Shield | Bonded Aluminum Tape |
| 2nd Shield | Aluminum Alloy Braid |
| Co-axial Jacket | PVC Black |
| Power Cores | 3 Core Plain Stranded Copper |
| Outer Jacket | Flame Retardant PVC, ST1 Grade |
| DC Resistance | Max. 62.0 Ω/Km at 20°C |
| Braid Resistance | Max. 75.0 Ω/Km at 20°C |
| Loop Resistance | Max. 138.0 Ω/Km at 20°C |
| Capacitance | ≤ 158.00 pF/meter |
| Power Core Resistance | Maximum 155.0 Ω/km @ 20˚C |
