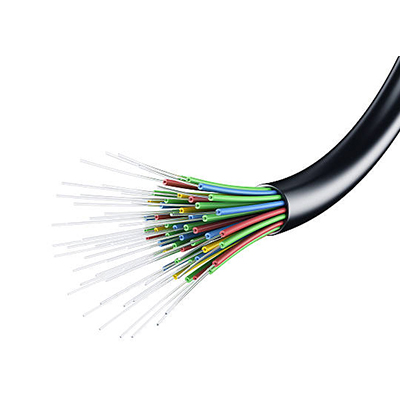

Internet Cables
Application
- Enhanced performance cable for transmission of high speed data, digital and analogue voice and video signals on LANs.
- Supports Gigabit Ethernet (1000 Base-T).
- Performance verified up to 550 MHz.
- Exceeds the requirements of ANSI/TIA-568-C.2 Category 6 and ISO/IEC standards.
- Suitable for structured cabling systems.
- ETL verified and UL listed.
Construction
- Conductor: 23 AWG Solid Bare Copper (4 Pair)
- Insulation: High Density Polyethylene
- Pair: 2 insulated conductors twisted together
- Separator: Cross filler
- Sheath: FR-PVC
- Cable Diameter: 6.3 ± 0.2 mm nominal
- Cable Weight: 51 kg/km nominal
- Printing: Sequential length counter marking
Electrical Properties
- Characteristic Impedance: 100 ± 15Ω
- Conductor Resistance: ≤ 9.38 Ω/100m
- Insulation Resistance: 1000 MΩ
- Mutual Capacitance: ≤ 5.6nF/100m
- Nominal Velocity of Propagation: 69%
- Operating Voltage: 72V
- Dielectric Strength: 1.0kV DC for 1 min
Transmission Characteristics Per 100m
| Frequency (MHz) |
RL (dB) |
ATT (dB) |
NEXT (dB) |
PSNEXT (dB) |
ELFEXT (dB) |
PSELFEXT (dB) |
ACR (dB) |
PSACR (dB) |
|---|---|---|---|---|---|---|---|---|
| 1 | 20.0 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 72.3 | 70.3 |
| 4 | 23.0 | 3.8 | 65.3 | 63.3 | 56.8 | 52.8 | 61.5 | 59.5 |
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 55.5 | 53.5 |
| 10 | 25.0 | 6.0 | 58.3 | 57.3 | 47.8 | 44.8 | 53.3 | 51.3 |
| 16 | 25.0 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 48.6 | 46.6 |
| 20 | 25.0 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 46.3 | 44.3 |
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 43.8 | 41.8 |
| 31.25 | 23.6 | 10.7 | 51.7 | 49.7 | 37.9 | 34.9 | 41.2 | 39.2 |
| 62.5 | 21.5 | 15.4 | 45.4 | 43.4 | 31.8 | 28.8 | 30.0 | 28.0 |
| 100 | 20.1 | 19.8 | 39.8 | 37.8 | 21.8 | 18.8 | 19.8 | 17.8 |
| 200 | 18.0 | 28.0 | 35.0 | 33.0 | 18.0 | 15.0 | 7.0 | 5.0 |
| 250 | 17.3 | 32.8 | 33.8 | 31.8 | 19.8 | 16.8 | 5.5 | 3.5 |
| 500 | 15.2 | 45.3 | 31.2 | 29.8 | 13.8 | 10.8 | 3.5 | 2.1 |
Mechanical Properties
- Bending Radius: 4 × Cable Diameter
- Pulling Force: 11.5 kg
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -20°C to +80°C
Ordering Information
| Part Code | Description |
|---|---|
| MCB-C6UGYH-100 | CAT6 UTP Cable Solid 100M |
| MCB-C6UGYH-305 | CAT6 UTP Cable Solid 305M |
