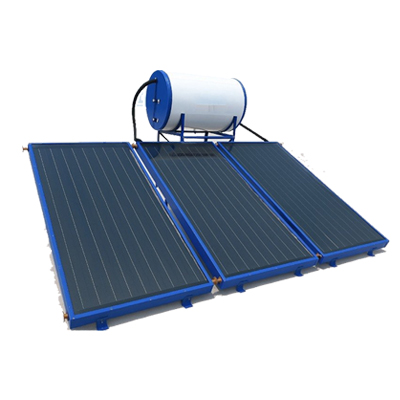

Solar Water Heaters
Technical characteristics
horizontal solar tank
Coating of the inner tank: Glasstined coating
Internal tank corrosion protection:
- Glasslined coating completely safe and keeping the hard water clean and hygienic
- Magnesium anode 3 cm in diameter and 50 cm long.
Welding: Plasma welded(Co2)
Insulation: High density expanded polyurethane (48Kgs/m)
Inner Vessel Maximum Working/ Test Pressure:
1.5 bar - 5 bar (10 min)
Maximum service temperature: 75°C
Siding : GI With Powder Coated, Resistance to chemical attack and corrosion in a humid environment
| SI.NO | PARTICULARS | SPECIFICATION |
|---|---|---|
| 1 | Section | 1.2mm thick Aluminium |
| 2 | Back Sheet | 0.46 mm thick Aluminium |
| 3 | Insulation | Fiber Glass Wool |
| 4 | Foil | 0.05 mm thick Aluminium |

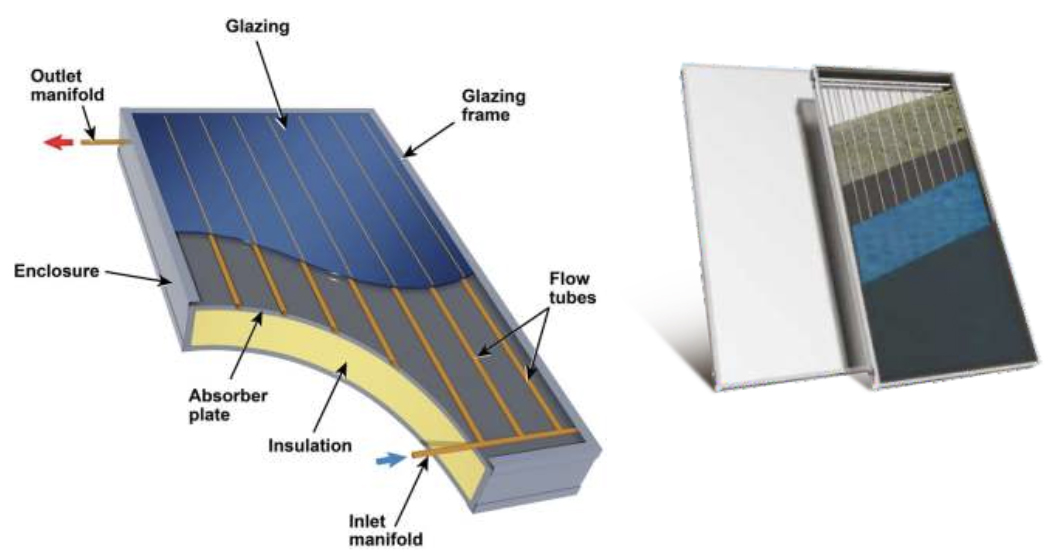

| 5 | Flat Plate Collector(9 fins) | Ultrasonic welded with Nalsun coating |
| 6 | Copper pipe | 24 SWG Aluminium strip 0.20 mm |
| 7 | Header pipe | Copper 24 SWG |
| 8 | Glazing | 1000 2000 4 mm clear toughened glass |
| 9 | Glass beading | E.P.D.M Rubber |
| 10 | Fasteners | High-Grade Steel |
| 11 | Grommets | E.P.D.M Rubber |
| 12 | Flanges | Brass |
| 13 | Finishing | Powder Coating |
| 14 | Collector size (without carton box) | 2030 1030 115 mm |
| SI.NO | PARTICULARS | SPECIFICATION |
|---|---|---|
| 1 | Inner Tank | 1.2mm C.R.C.A sheet with CO2 welding inside coated with prime guard coating / 2.5mm for pressurized systems |
| 2 | Connecting Pipes | SS |
| 3 | Insulation | 50 mm thick PUF |
| 4 | Outer Cladding | Pre-coated laminated sheet (color: Half white) / Mirror finish |
| 5 | End Caps | GI with PP coating |
| 6 | Support Structure | Mild steel with powder coating |
