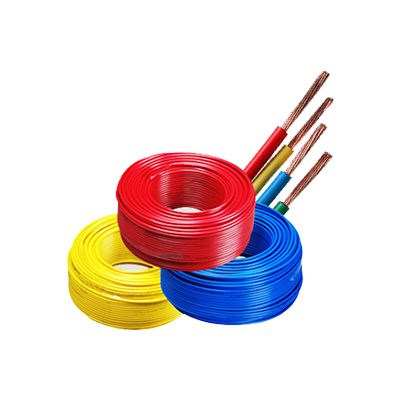

House Wires
Products
House Wires
Applications
These cables are used for wiring domestic and commercial buildings. The multi strand / solid conductors make it ideal for concealed wiring. It is suitable for installation in lighting fittings and appliances up to 1100 v (A.C)
Features
- Zero Halogen acid gas Evolution.
- Excellent resistant to tarnishing of copper.
- Excellent resistant to moisture, Greece and oil.
- Longer Flexible life.
- High Flame retardant insulation.
Cable Structure
- Conductor : 99.97% pure electrolyte grade copper.
- Insulation : ZHFR compound with a high insulation resistance value
- Operating Temp : -15°c to maximum +70°C
- Color : Red, Grey, Orange, White, Green, Yellow, Green/Yellow, Blue, Black, Brown
- Standard length cable packing : 90 meters and 180 meters coil each or as per your requirements
- *Any other Color on specific request can also be supplied
Technical Specification
| Nominal cross sectional area of conductor | Number/Nominal dia of strands | Nominal insulation thickness | Max. Overall diameter | Max conductor resistance at 20°C | Current rating | |
|---|---|---|---|---|---|---|
| Casing | Concealed | |||||
| 1 | 14 / 0.30* | 0.7 | 3.2 | 18.1 | 14 | 13 |
| 1.5 | 22 / 0.30* | 0.7 | 3.4 | 12.1 | 18 | 16 |
| 2.5 | 36 / 0.30* | 0.8 | 4.2 | 7.41 | 24 | 20 |
| 4 | 56 / 0.30** | 0.8 | 4.8 | 4.95 | 32 | 26 |
| 6 | 84 / 0.30** | 0.8 | 6.4 | 3.30 | 36 | 32 |
